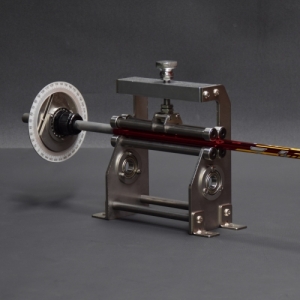

SHAFT PROTRACTOR

Shaft Protractor / Rocator

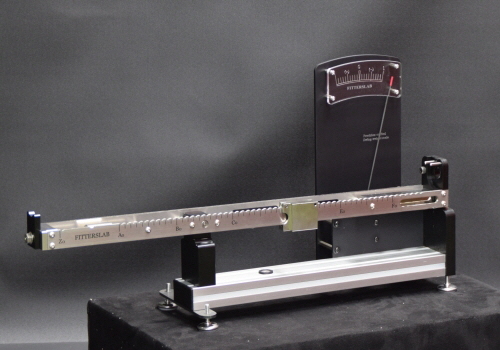

PRECISION SWING WEIGHT SCALE

FITTERSLAB PRECISION SWING WEIGHT SCALE for club fitting is a
precision mechanical swing weight measuring device
with a fixed high-precision mechanical structure, zero-calibration function,
and patented control system, offering measurement accuracy and convenience
with an almost-permanent lifespan

MAIN FEATURES OF THE PRODUCT

A. Precision Measurement Performance in 0.1-point Increments

PRECISION SWING WEIGHT SCALE works by placing the club and positioning
the slide weight on the slide bar, It automatically points the swing weight
by linking grid markings in 0.1-point increments

The slider bar that the user moves the weights with measures in 1-point increments,
and the scale that is linked and pointed automatically measures in 0.1-point increments
It is a high-precision measuring instrument with outstanding readability,
capable of measuring accurately down to 0.05 (1/20) point increments

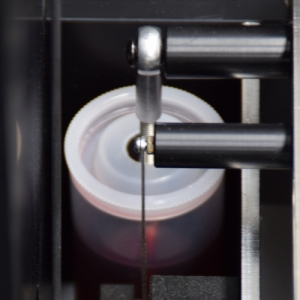

B. Rapid Measurement by Applying a Damping Device

PRECISION SWING WEIGHT SCALE features a patented
damping device, so when the club is set, the instrucor stops
immediately and measurement is possible, making the measurement time very short

C. Self-zero-Adjustment Function

PRECISION SWING WEIGHT SCALE features a Zero-check and Adjustment function,
allowing users to verify and Fine-tune the Zero-point
The built-in Zero-set function not only allows to clearly verify the reference for the measurement value,
but also helps maintain the measurement equipment’s performance with precision at all times

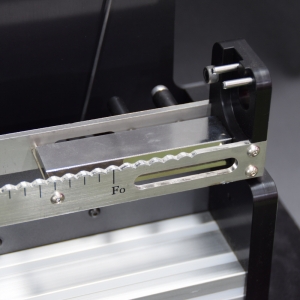

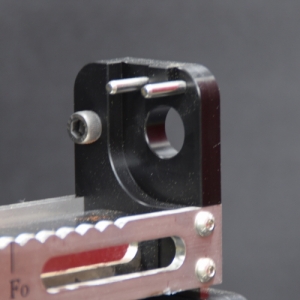

D. Mounting plate for all type of Grip configurations

The mounting plate of the PRECISION SWING WEIGHT SCALE is designed to
accommodate all grip geometries, and with the shaft slide hole,
it allows to predict how swing weight changes with club length adjustments

Each grip product has a variety of grip-end shapes and has its own measurement points,
but some measurement products are misjudged by as much as half a point
because the grip-end’s mounting point is not accurately aligned
PRECISION SWING WEIGHT SCALE accurately passes through all of grip shape

* The slide prediction function is an approximate prediction function,
so it is not an accurate measurement

E. Permanent Lifespan of Wear-Resistant Parts

PRECISION SWING WEIGHT SCALE is based on
the analog mechanical structure
Each moving component is equipped with wear-resistant parts, maintaining precision as well as Guarantees a semi-permanent service life

User Manual

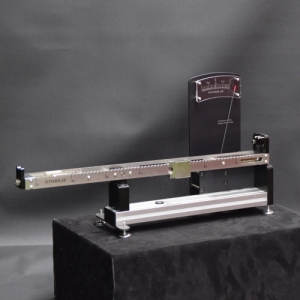

Installation of a Swing-weight Scale

1 PRECISION SWING WEIGHT SCALE must be installed on a flat, level surface without vibration
2 Use the leveler to adjust the tilt so that the main body’s horizontal water mark is centered

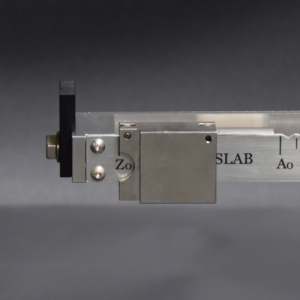

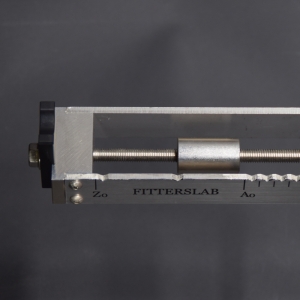

3 Remove the zero point block, place the slide weight at the left Z0,
and then check that the instrucor is centered

Precision Swing weight Scale
4 If the instrucor is not at position 0, use an adjustable weight to set the zero point,
then insert the zero point block to complete the installation

sw-scale
* It is advisable to check zero calibration about once or twice a year,
and if the measuring instrument has been moved or subjected to impact,
please be sure to check it

Measurement of Swing-weight

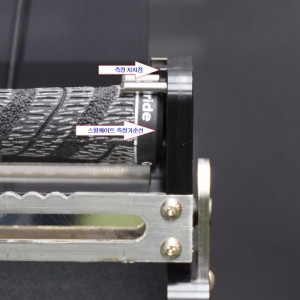

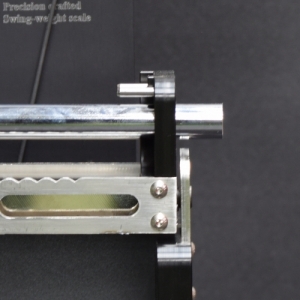

1 Slide the club slowly with the mounting plate,
place it at the point where the mounting plate and grip contact, and then measure
At this time, the part marked in the photo is the measurement reference point,
so depending on the shape of the grip, the back of the grip may lift off the mounting plate

Precision Swing weight Scale

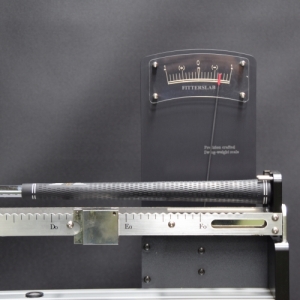

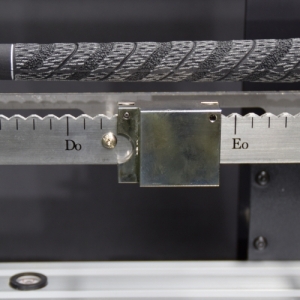

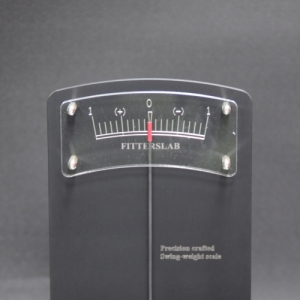

2 Slideweight (per point) D3 + instruction (per 0.1 point) 0.2 = D3.2

3 Slideweight (per point) D4 + instruction (per 0.1 point) - 0.8 = D3.2

Precision Swing weight Scale

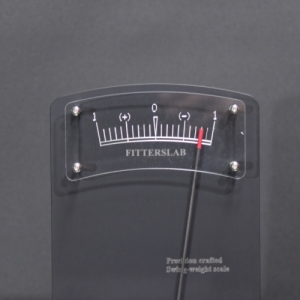

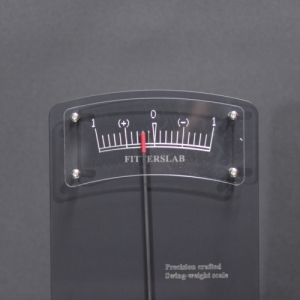

* The 0.1-point instrucor is (+) when on the left, and (-) when on the right

Notes and References

1. The damping oil is not a component that evaporates,
so it does not need to be replaced or replenished
2. If the measuring device is tilted at an angle greater than 45 degrees or laid on its side,
the damping fluid may leak

INTERGRATED CLUB-LENGTH BOARD

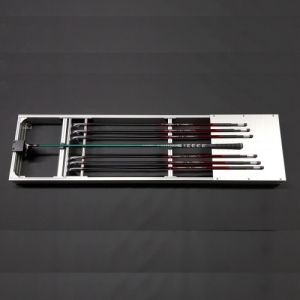

FITTERSLAB INTERGRATED CLUB-LENGTH BOARD is an integrated length measuring device
that can simultaneously measure club lengths from drivers to wedges,
making it suitable for large-scale club manufacturers or large workrooms of golf brands
with heavy workloads.
It has been manufactured to comply with the USGA and JPGA length measurement standards

Main Features of the Product

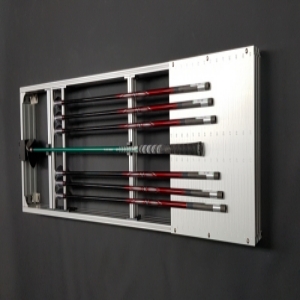

1. Integrated Structure Capable of Measuring an Entire set at once

golf club length board
FITTERSLAB INTERGRATED CLUB-LENGTH BOARD is designed to measure multiple clubs simultaneously
In particular, it is a useful piece of equipment that can improve work efficiency in workshops
with high production volumes in clubs
And because it can measure the club set simultaneously, It also helps prevent cutting errors

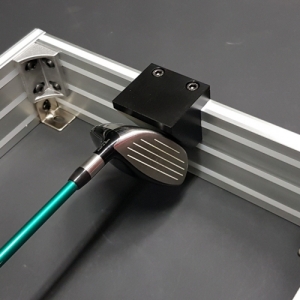

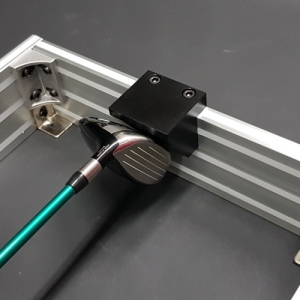

2. Measurement of Drivers, Woods, and Utility clubs

golf club length board
Mount it on the central head block and resin guide for measurement
It was designed so that all methods, including not only the conventional hosel method
but also the sleeve method, can be measured

However, because the shape of the sole varies among each product of this type of club,
the accurate length can only be measured by pressing the head firmly against the head block
and measuring at the angle where the sole contacts

After resting, gently push the club toward the head block,
the sole will press against it as shown in the center photo, and can measure the exact length

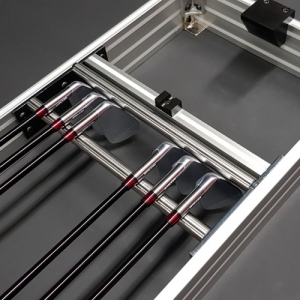

2. Measurement of Irons and Wedges

sw-scale golf club length board
For clubs like irons and wedges,
place the clubhead so that the sole of the head touches the center of the head bar,
and measure it without any separate operation while it is in that position

Since can mount and work at the same time,
it also helps prevent mistakes with length-cutting lamps in advance

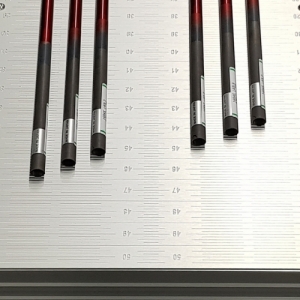

4. Grid in 1/8-inch units

Grid of the FITTERSLAB INTERGRATED CLUB-LENGTH BOARD uses 1/8-inch,
the standard unit for golf fitting, as its basic grid specification
The center dimension is the measurement value for clubs that rest on blocks such as Driver, Fairway woods and hybrids, while the outer dimension is the measurement value for irons and wedges

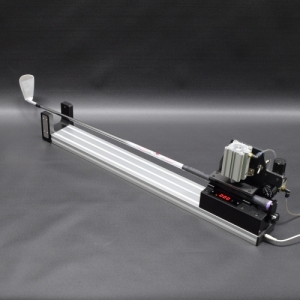

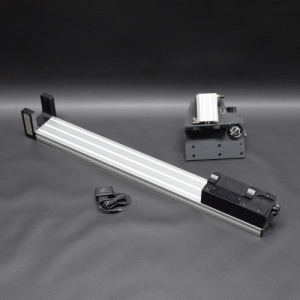

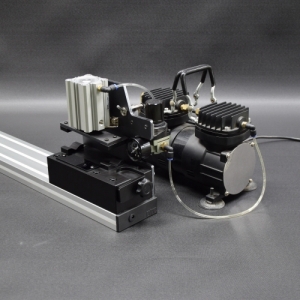

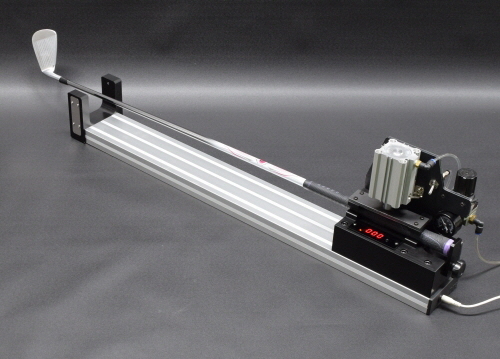

PNEUMATIC SHAFT CPM COUNTER

FITTERSLAB PNEUMATIC SHAFT CPM COUNTER is a pneumatic CPM counter that
has been manufactured compactly with enhanced measurement accuracy and durability.

Main Features of the Product

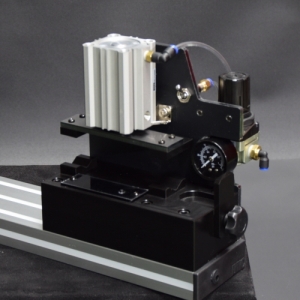

1. Use of KS pneumatic Components Made in Korea

golf shaft cpm counter
FITTERSLAB PNEUMATIC SHAFT CPM COUNTER uses KS-standard pneumatic cylinders
and pneumatic components in its pneumatic actuator,
resulting in smooth operating characteristics and outstanding durability.
It is also capable of functioning as a mini compressor

2. Application of the Most Widely Used IR Sensing Circuit

Sensing applies the most widely used IR sensing method,
and by using high-precision sensor components and integrated circuit components,
it achieves high measurement stability and durability.
It is also designed with high-strength sensor blocks to always maintain the sensor’s measurement center with precision

3. Precision-Machined, Highly Durable Body parts

Body parts machined by laser processing and high-precision CNC machining are designed not only to assist precise measurement, but also to ensure permanent durability, complete club protection, and to safely protect electronic circuits,

How to Use the Product

1. Product Installation and Preparation for use

golf shaft cpm counter

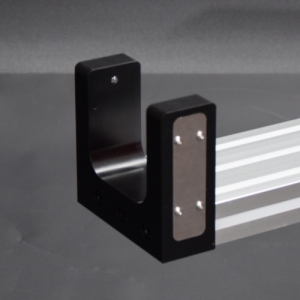

To prevent damage during logistics and transportation, the main frame and the body are shipped separately
Just tighten the bolts on the pneumatic plate on the back of the main body, and place it on a flat surface

* If the bolt is tightened too much, the threads may be damaged, so tightening it just enough to prevent it from moving is sufficient

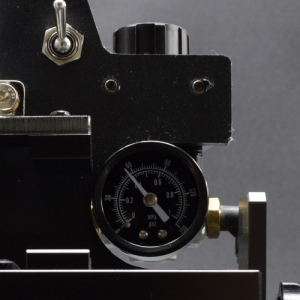

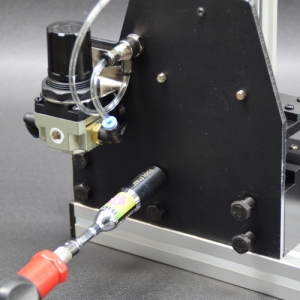

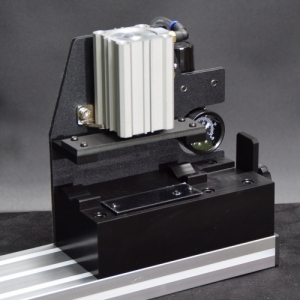

2. Pneumatic Connection

golf shaft cpm counter

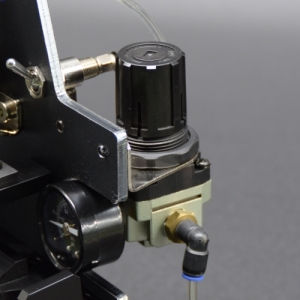

Connect the pneumatic hose or coupler and adjust the regulator
To adjust the pneumatic regulator, pull the regulator cap upward while the air is being supplied,
then turn it to regulate the air pressure, and once the adjustment is complete,
press the cap back down to lock it in place so it does not turn

* For pneumatic systems, around 0.4–0.5 Mpa is appropriate,
and once adjust the regulator, rarely need to make further adjustments

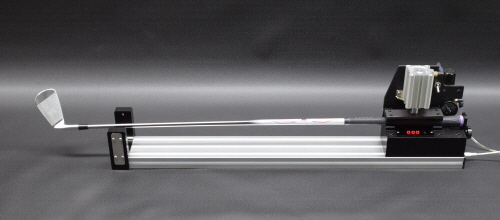

Measurement of Shaft CPM

golf shaft cpm counter
1. Position the club and pull down the toggle switch to secure the club
2. When press the measurement switch, the red lamp lights up and the device enters measurement mode. flick the head up and down, the measurement will be taken

Due to the characteristics of IR sensors, there may be misreading caused by
external light interference or reflected light during measurement,
so please verify the measurement value by repeating the measurement 2–3 times
When the shaft is sufficiently vibrated, about two consecutive measurements can be made

References

golf shaft cpm counter

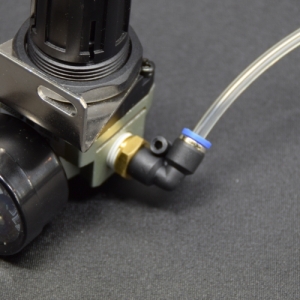

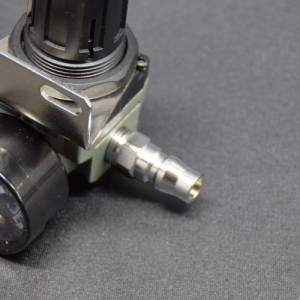

Pneumatic shaft cpm counter requires a compressor for operation
A compressor capable of handling about 0.5 MPa pressure is sufficient for use,
and can choose between the one-touch fitting method and the coupling method

Due to the characteristics of IR sensors, measurements may not be possible if sunlight hits the sensor
When installing outdoors in strong direct sunlight or by a window,
please ensure that direct sunlight does not come into direct contact with the sensor

The product’s power adapter is a universal type, so it can be used regardless of whether it is 110V or 220V

COMPOSIT SHAFT SPINE ANALYZER

The most important factor that determines a golf club’s ball flight and distance performance
is the spine characteristics of the golf shaft
The spine of a golf shaft is broadly divided into the Loading spine and the Path spine,
Two types of spine elements combine to determine the shaft’s motion characteristics for each swing

However, existing measuring equipment can only measure a single element each,
so it was impossible to accurately verify the shaft spine
FITTERSLAB composite shaft spine analyzer is a precision measurement device that
measures and combines two types of spine elements together,
allowing the shaft to perform at its full potential

About Shaft Spine

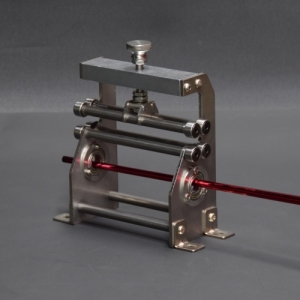

shaft spine finder
When manufacturing a club,
it is common to produce it based on the shaft manufacturer’s printed spine marking line
However, when measured accurately using a spine analyzer,
it can be confirmed that the manufacturer’s spine labeling is not very often accurate
Because it is impossible for manufacturers who supply in large quantities to accurately measure, sort,
and ship spines for each product

However, in club fitting, where the highest performance must be achieved,
it is a very important analytical factor,
and since it is common for manufacturers to list products with reverse spine,
analyzing the spine during club fitting is a very important process

FITTERSLAB COMPOSIT SHAFT SPINE ANALYZER is essential fitting equipment that
accurately analyzes these shaft characteristics,
enabling the prediction of performance and ball flight

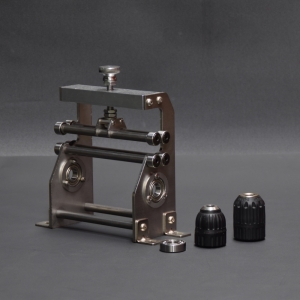

Product Features

FITTERSLAB COMPOSIT SHAFT SPINE ANALYZER is designed with resin
excluded from the shaft’s contact area, preventing misreading caused by compression fixation
was also made with a rotation control design,
so it was released every time it was turned there is no need to repeat the tightening motion
Very convenient structure for measuring by slowly turning only the shaft

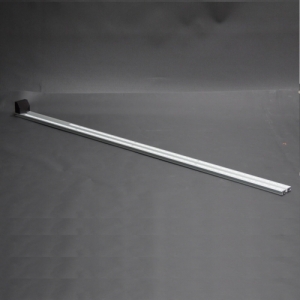

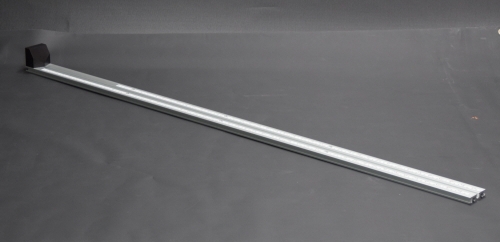

GOLF CLUB LENGTH RULLER

From drivers to putters — this is a club length measuring device designed so that
the length of every club can be measured according to USGA & JPGA rules

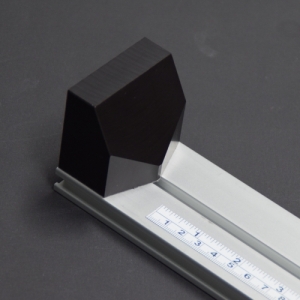

This uses a multi-type head block designed by FITTERSLAB,
allowing all club lengths to be measured in accordance with the rules of the USGA and JPGA

FITTERSLAB GOLF CLUB LENGTH RULLER is equipped with a multi-block and
a measuring grid designed by FITTERSLAB,

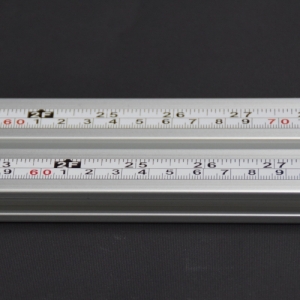

Legally, millimeter-scale markings are also applied, so it may appear somewhat complicated

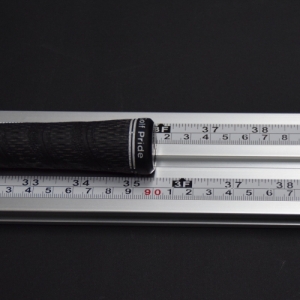

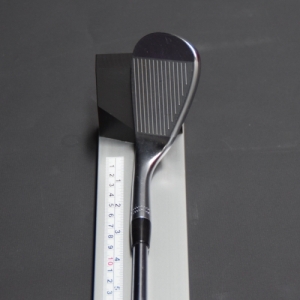

Measurement of All clubs except the Putter

club length ruller

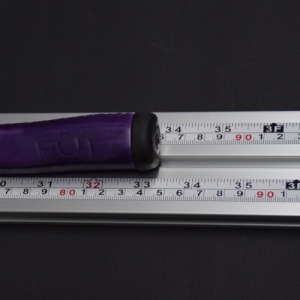

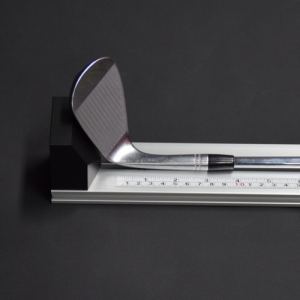

For all clubs except the putter—drivers, woods, wedges, etc.—set the groove vertically
when measuring and read the measurement number at the bottom of the photo
(In the photo, it becomes 35-3/8 inch.)

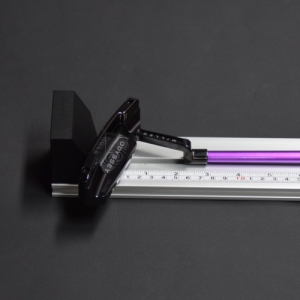

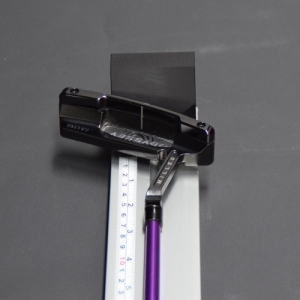

Measuring Putter length

club length ruller
For the putter, lay the head face horizontally to the left or right and measure with the scale
above in the photo (It becomes 33-3/4 inch in the photo.)

* In principle, the putter’s lower mark is the reference line, just like with other clubs,
but recently putters on the market have tended to be about
half an inch shorter than earlier models
For older model products, you may need to read the dimensions at the bottom

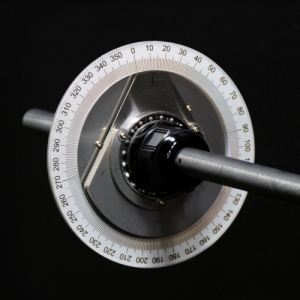

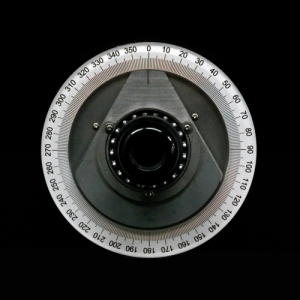

PRECISION SHAFT PROTRACTOR

golf shaft protractor

FITTERSLAB PRECISION SHAFT PROTRACTOR is a precision fitting device that
can be attached to the shaft to measure the exact rotation angle,
from simple tasks requiring a 180-degree rotation such as logo down,
to setting the required shaft angle
In particular, it is essential equipment for ballistic adjustment tasks such as spine finding

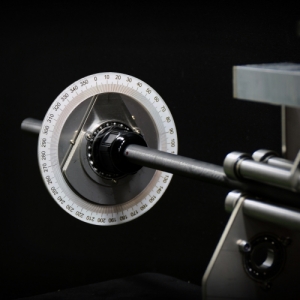

golf shaft protractor
It is designed to be mounted regardless of the shaft’s fixed position or orientation,
When used in combination with FITTERSLAB “COMPOSIT SHAFT SPINE ANALYZER,”
It will be a fitting device that is very useful for precise ball flight fitting
