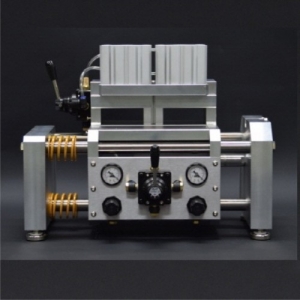

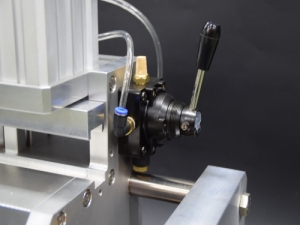

Two-system pneumatic control line for crimping and extracting

Since all actions, including the control of the club’s compression and extraction,
are controlled by operating pneumatic levers, all movements are carried out easily and quickly
Also, because it is always crimped at a constant pressure according to the set value,
there is no risk of shaft breakage due to overload, and it maintains strong pull-out force

It is designed so that pneumatic lines such as pneumatic gauges and pneumatic control valves
can be separately installed on the crimping machine that crimps and secures the club
and the head-extracting machine, allowing each line to be controlled independently.

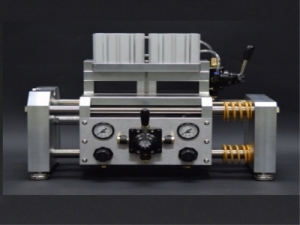

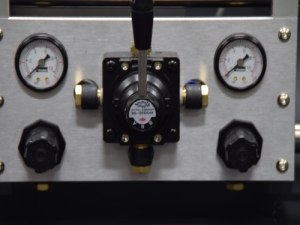

The pneumatic control panel is installed on the front, making it easy to check and adjust each system
In particular, the separated pneumatic control function of the shaft press is designed to respond
independently without attenuating the drawing function during extraction operations vulnerable to overload

Urethane extrusion block that maintains strong and safe extrusion

At the crimping section responsible for the club’s crimping,
a two-part independent transfer method is applied
High-hardness milled urethane blocks were pressed in

The two-part independent feed method significantly extends the extrusion length on the shaft,
preventing shaft breakage caused by concentrated loads, and also responds powerfully and
slip-free even under strong extracting

The high-density urethane block transmits high-pressure loads to the shaft with appropriate deformation,
resists slipping due to its high stiffness and friction, is heat-resistant during extrusion,
and has excellent durability, making it usable semi-permanently

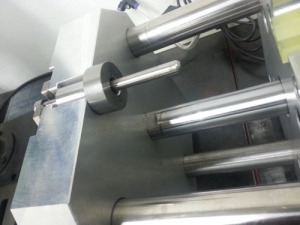

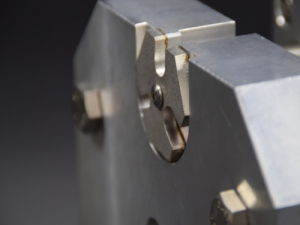

Application of SUS push plate machined with a tip laser

The push plate for drawing the head is made by edge-hardening a SUS plate
It is made with high rigidity so that it can be used semi-permanently

The revolver-style mounted push plate is designed to accommodate all shaft specifications of golf clubs,
and it also features a dedicated extraction hole to support the latest sleeve-type trend for drivers and woods

The main block, which firmly supports the push plate, is made of aluminum with excellent thermal,
conductivityeffectively dissipating heat generated during extraction and preventing shaft degradation
caused by high temperatures

Automatic ferrule setting function

In FITTERSLAB PNEUMATIC HEAD EXTRACTOR, as the first accessory function of a head extractor
We have applied a pneumatic automatic ferrule setting function that quickly and accurately sets the ferrule

This feature incorporates FITTERSLAB’s patented automatic centering function,
which automatically centers the ferrule, preventing dents or eccentric deformation of
the ferrule’s finishing area and dramatically improving work efficiency.
It is especially useful in high-volume brand after-sales service and fitting rooms

With simple attachment and detachment, can switch between head extraction and ferrule setting operations,
and the automatic safety ferrule setters come standard with both graphite and steel versions

기타 주의 및 참고사항

FITTERSLAB PNEUMATIC HEAD EXTRACTOR is equipped with a large, high-pressure pneumatic cylinder
Do not ever put your hands in the shaft crimping area and the drawing drive area,
and be careful to avoid injury

Since the equipment is a heavy load of about 40 kg,
please make sure to install it only in a location where safety is fully considered before use

To prevent unnecessary air pressure from being applied when the head separator is not used for a long time
It is best to position the pneumatic lever in neutral

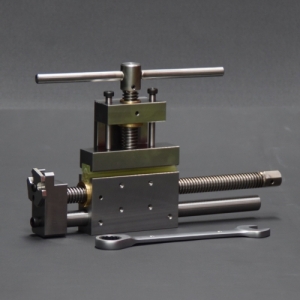

1. Strong Clamping Force with a Wide Body Structure

The main body of FITTERSLAB HEAD EXTRACTOR designed for clamping the shaft
is built exceptionally long.
A longer body allows for an extended shaft clamping length,
which distributes the clamping load and enables powerful extraction even with short heating times.
Unlike other products where shafts are easily damaged after just one or two extractions,
FITTERSLAB HEAD EXTRACTOR can extract multiple times without harming the shaft.

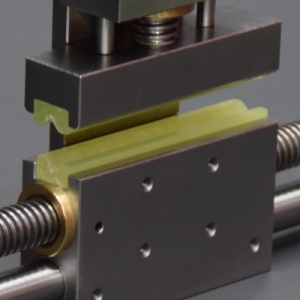

2. High-Clamping-Force Urethane Blocks

All FITTERSLAB HEAD EXTRACTOR utilize milled urethane clamping blocks.
Due to the inherent rigidity and friction of urethane, it maintains a strong grip during head extraction
even under the high heat that typically causes rubber materials to slip.

In particular, the milled urethane blocks deliver powerful clamping force amplified by a tread effect.
Combined with the high-strength body structure, this allows easy extraction with minimal heat,
fundamentally preventing shaft damage

**Why Urethane Matters:**
Clamping force is the most crucial aspect of a head extractor
. Because powerful extraction performance is essential to push out the head
before the heat-sensitive shaft tip degrades, a slipping shaft forces to apply excessive heat,
which is fatal to the shaft.
If the shaft tip is too hot to hold by hand after extraction, it should be considered heat-damaged.

Products with short clamping lengths have limited clamping force,
and rubber blocks cause the shaft to slip even under moderate extraction loads.
Experienced club fitters strictly avoid rubber-based blocks.
Urethane is typically yellow, while rubber is black, making them easy to distinguish.

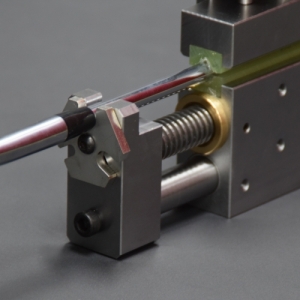

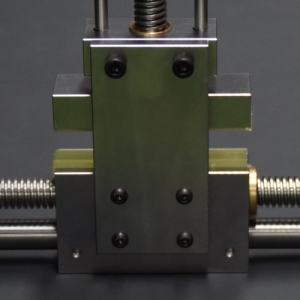

3. Wear-Resistant Extraction Components

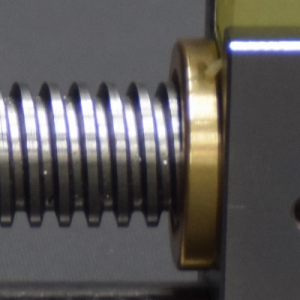

FITTERSLAB HEAD EXTRACTOR features a large-diameter rolled lead screw and
an exceptional wear-resistant rolled nut as separate components from the main body,
ensuring outstanding durability and easy maintenance

Furthermore, the guide bar that regulates the movement of the extraction axis is also built with
a large diameter to withstand the moments generated during heavy-duty extractions.
Wear-resistant components are applied to all frictional parts of the extraction system
to ensure smooth travel and semi-permanent durability.

This part is a critical component that determines the service life of the head extractor.
Since the extracting shaft of the head extractor operates via the rotation of a bolt,
it is a part subject to continuous wear.
There is a significant difference in service life between standard threaded products designed for fixed use,
which are susceptible to wear, and threaded products designed for feed use

. Failures in the head extractor's extracting shaft are mostly caused by wear
on the female threads of the main body.
In such cases, since products with threads machined into the main body are fundamentally difficult to repair,

If you are looking for a product that will last a long time,
it is advisable to carefully examine the components applied to the extracting shaft and
thoroughly verify that there are no issues with repairs in the event of a failure.

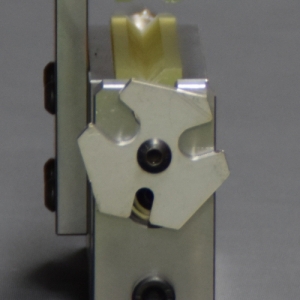

4. High-Rigidity Push Plate Compatible with All Head Types

The push plate of FITTERSLAB HEAD EXTRACTOR is crafted from edge-hardened, high-strength steel,
guaranteeing permanent rigidity and durability while perfectly accommodating all club types,
including sleeve-type designs

. The push block supporting the push plate is also heavily machined,
providing excellent heat insulation as well as strong resistance against extraction moments.

5. Reversible Extraction Direction

FITTERSLAB HEAD EXTRACTOR is designed to allow flexible switching of the extraction direction.
can easily change the direction by simply loosening the four bolts on the back of the main body
and reorienting the plate as desired, enhancing user convenience.

6. Smooth and Prompt After-Sales Service via Standardized Consumable Parts

FITTERSLAB fitting equipment components are supplied separately as replaceable parts.
Moreover, because they are manufactured using high-precision machining,
users can easily service them themselves

. Especially for head extractors —being the most fundamental fitting equipment—
they are built to let users easily maintain and service all parts independently.

Usage Instructions and Precautions

1. **Avoid Reverse Operation:**
Forcibly tightening the push bolt in the direction opposite to extraction can damage
the fixing bolts or internal lubricating components.

2. **Protect Urethane Blocks:**
While urethane blocks are inherently heat-resistant,
try to avoid exposing them directly to open flames or intense heat.

3. **Secure Clamping:**
If the shaft clamping handle is tightened too loosely, slipping may occur during extraction.

4. **Lubrication & Maintenance:**
While routine lubrication is generally unnecessary, periodically applying lubricant to the brass nut
helps protect it from rough particles generated during work.
Thrust lubrication washers applied at friction points are consumable items
inspect them regularly and replace them when worn

. 5. **Warranty Period:**
Urethane blocks and brass nuts carry a 2-year standard limited warranty,
while the main body has a 5-year warranty.

6. **Consumables:**
The ratchet wrench is a consumable item and is not covered under warranty.

7. **Warranty Void:**
Removing the product label will void the warranty, even if it is still within the valid warranty period.

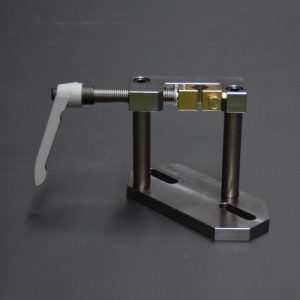

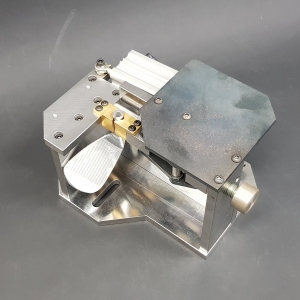

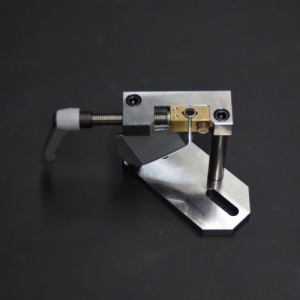

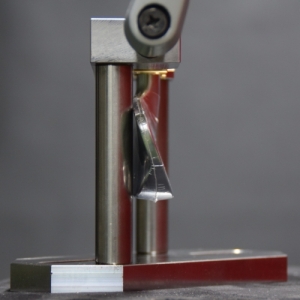

1.Precision CNC Milled Body

Every component of the IRON HOZEL REAMING VISE is crafted using precision CNC milling.
The precisely assembled body ensures superior squareness to prevent
off-axis (eccentric) machining and eliminates vibration during drilling for precise results.

Body structures made by welding aluminum profiles or steel materials suffer from
significantly poor perpendicularity, which leads to uneven machining and vulnerability to vibration,
inevitably resulting in significantly reduced precision and safety.
This is why FITTERSLAB manufactures its products using CNC precision machining.

In particular, with the recent trend of mounting sleeves on irons,
if the strength or precision of the main body is compromised,
uneven machining becomes likely and precise work becomes difficult.
The FITTERSLAB HOZEL REAMING VISE is manufactured with a precise and robust structure that
perfectly handles such tasks.

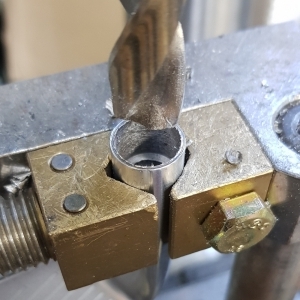

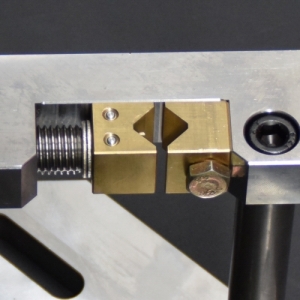

2.Brass Clamping Blocks

Equipped with high-grade brass blocks that offer

1. minimal deformation over time,
2. robust clamping under heavy drilling,
3. superior heat dissipation to protect hozels from drilling heat,
4. non-marring design that prevents scratches on club hozels

The block of the FITTERSLAB HOZEL REAMING VISE maintains strong clamping force and durability
with extremely minimal deformation even after prolonged use, and features a brass block that
protects the hosel from high temperatures during drilling by dissipating heat faster than aluminum.

The aluminum blocks commonly used in other products have very weak physical properties,
so they are prone to severe deformation and spreading with use, resulting in very poor durability.
Additionally, they fail to sufficiently compress the hosel under strong pressure and slip easily,
making them susceptible to scratches.

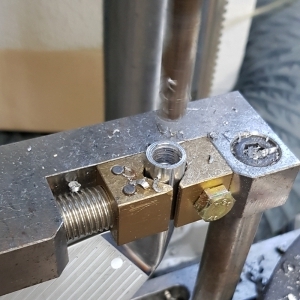

A. Mounting to a Drilling Machine

The bolt holes on the base are engineered to fit all standard bench drilling machines
Secure the HOZEL REAMING VISE to the drilling machine bed using the included bolts
Because club specifications and center points vary, pairing this with a
commercially available industrial X-Y table can greatly enhance operational convenience.

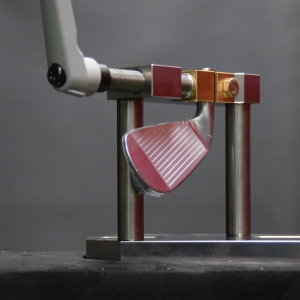

B. Securing the Club Head

Contact the head against the column to prevent rotation during operation.
Do not attempt to drill without resting it against the column, as the head may spin.
The lever can be turned while in the locked position to adjust its angle for convenient operation.

Important Safety & Maintenance Notes

1. Securely mount the main body to the drilling machine before use.

2. Ensure the drill centerline and hozel centerline are properly aligned to
prevent off-axis machining or dangerous drill breakage.
(A simple visual check is usually sufficient)

3. Tighten the clamping lever securely to avoid slippage during drilling

4. Regularly apply lubricant to the lever bolts and nuts to ensure smooth operation and longevity.

5. Brush away metal chips after every operation.
Trapped chips between the block and hozel can cause surface scratches.

6. The product does not feature an extra surface coating,
which means natural oxidation or rusting can occur over time;
however, this is purely aesthetic and does not affect performance.

7. Removing the product's label will void the warranty, regardless of the warranty period.

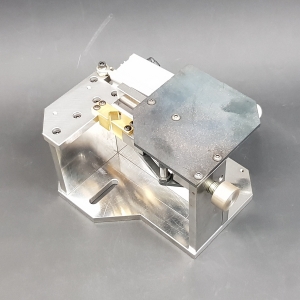

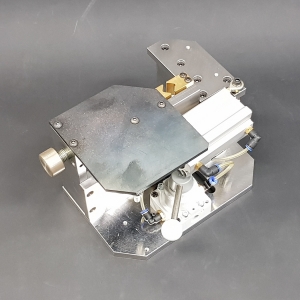

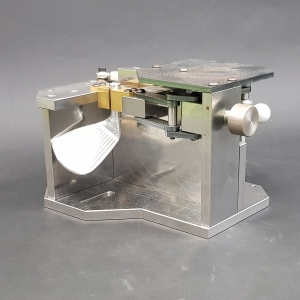

1.Precision CNC Milled Body

The body features a robust thick steel frame housing precision CNC-milled internal components.
This engineered squareness prevents off-axis (eccentric) machining and eliminates vibration
during drilling for flawless results.

Equipped with FITTERSLAB's proprietary crank-lever pneumatic clamping system,
it delivers fast operation combined with powerful, secure clamping strength.

2.High-Grade Brass Clamping Blocks

Equipped with high-grade brass blocks that offer

1. minimal deformation over time,
2. robust clamping under heavy drilling,
3. superior heat dissipation to protect hozels from drilling heat,
4. non-marring design that prevents scratches on club hozels

The block of the PNEUMATIC HOZEL REAMING VISE maintains strong clamping force and durability
with extremely minimal deformation even after prolonged use, and features a brass block that
protects the hosel from high temperatures during drilling by dissipating heat faster than aluminum.

A. Mounting to a Drilling Machine

The bolt holes on the base are designed to fit all standard bench drilling machines,
allow to secure the unit using the included bolts.

The adjustment bolt on the front is used to adjust clamping pressure according to hozel diameter,
and once set initially, rarely requires further adjustment.

*Recommended Air Pressure:* 0.5 MPa or higher.

B. Securing the Club Head

Push the right lever forward with the head firmly pressed against the back steel plate to lock it securely.
Do not attempt to drill without resting it against the plate,

Important Safety & Maintenance Notes

1. Because this is a pneumatic device,
never place your hands or fingers near moving/clamping parts to avoid serious injury.
Always wear appropriate safety gear.

2. Securely mount the main body to the drilling machine before use.

3. Ensure the drill centerline and hozel centerline are properly aligned to prevent
off-axis machining or dangerous drill bit breakage (a quick visual check is sufficient)

4. Periodically apply lubricant to moving parts outside of the brass blocks
to ensure smooth operation and longevity.

5. Brush away metal chips after every operation using a brush.
Trapped chips between the block and hozel can cause surface scratches.

6. Removing the product's label will void the warranty, regardless of the warranty period.
